Fabrication Equipment

Fabrication Equipment

Dover Tank & Plate Co operates a fully equipped facility in Dover, OH, using advanced fabrication equipment to deliver precise, high-quality results for every project. Our shop features CNC drill lines, hydraulic shears, beamline systems, press brakes, and specialty rolling machines capable of handling a wide range of materials and dimensions. From heavy structural components to custom-formed steel parts, our in-house capabilities ensure tight tolerances, consistent production, and fast turnaround. With every cut, weld, and roll, we maintain the standards that have made us a trusted partner in steel fabrication for over a century.

Material Processing Equipment

  • Standard Industrial Corp hydraulic plate shear: 5/8” x 12’-0″ wide
  • Piranha hydraulic punch press
  • AKS Durakut table: 10′ wide x 25′ long x 4″ thick plasma (8″ thick oxyfuel) capable of cutting high and low carbon steel, stainless steel, nickel, and aluminum
  • Haeusler 10′ wide plate rolls
  • Montgomery 6′-0″ wide plate rolls
  • HTC 400 ton press brake (144″ long)

Fabrication Equipment

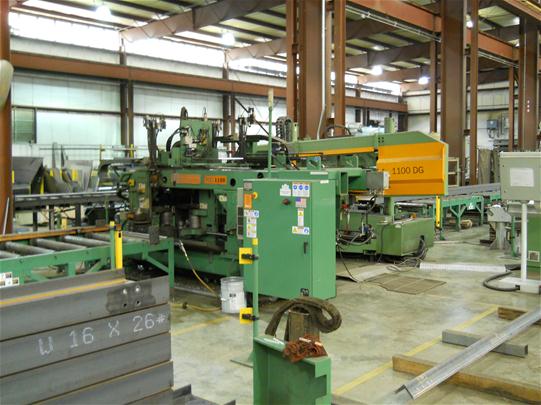

  • Peddinghaus beamline: Drills 3″x2″ angles up to 40″ wide flange beams with 3-axis drilling and scriber
  • Sub-arc welding machine with track
  • Multiple MIG and TIG welding stations
  • Custom beam cambering machine (up to W24x146)
  • Overhead cranes: (2) 10-ton, (3) 5-ton units

Cutting, Drilling, and Forming Equipment

  • CNC Drill Line: shapes up to 44” wide x 60’-0” long
  • Hydraulic Saws: straight or miter cuts up to 18” x 18”
    CNC Clip Master:
    • Punch angles up to 6x6x1/2 x 50’-0” long
    • Punch flat bar 1/2×6 x 50’-0” long
  • Hydraulic Plate Shear: 26 ga. to 5/8” thick x 12’-0” wide
  • Piranha Punch: plates/shapes up to ¾” thick
  • (2) Radial Arm Drills: holes up to 4” diameter in 20” thick material
  • Burn Table: 10’ x 24’ plasma, beveling, countersink, oxy-fuel cutting up to 8”
  • Rod Threading: up to 2½” diameter partial lengths
  • Brake Press (Pacific HTC 400):
    • Max: 1” thick x 6’-0” wide bend
    • Min: 7/8” leg for light gauge material; up to 12’-0” long 5/8” thick steel

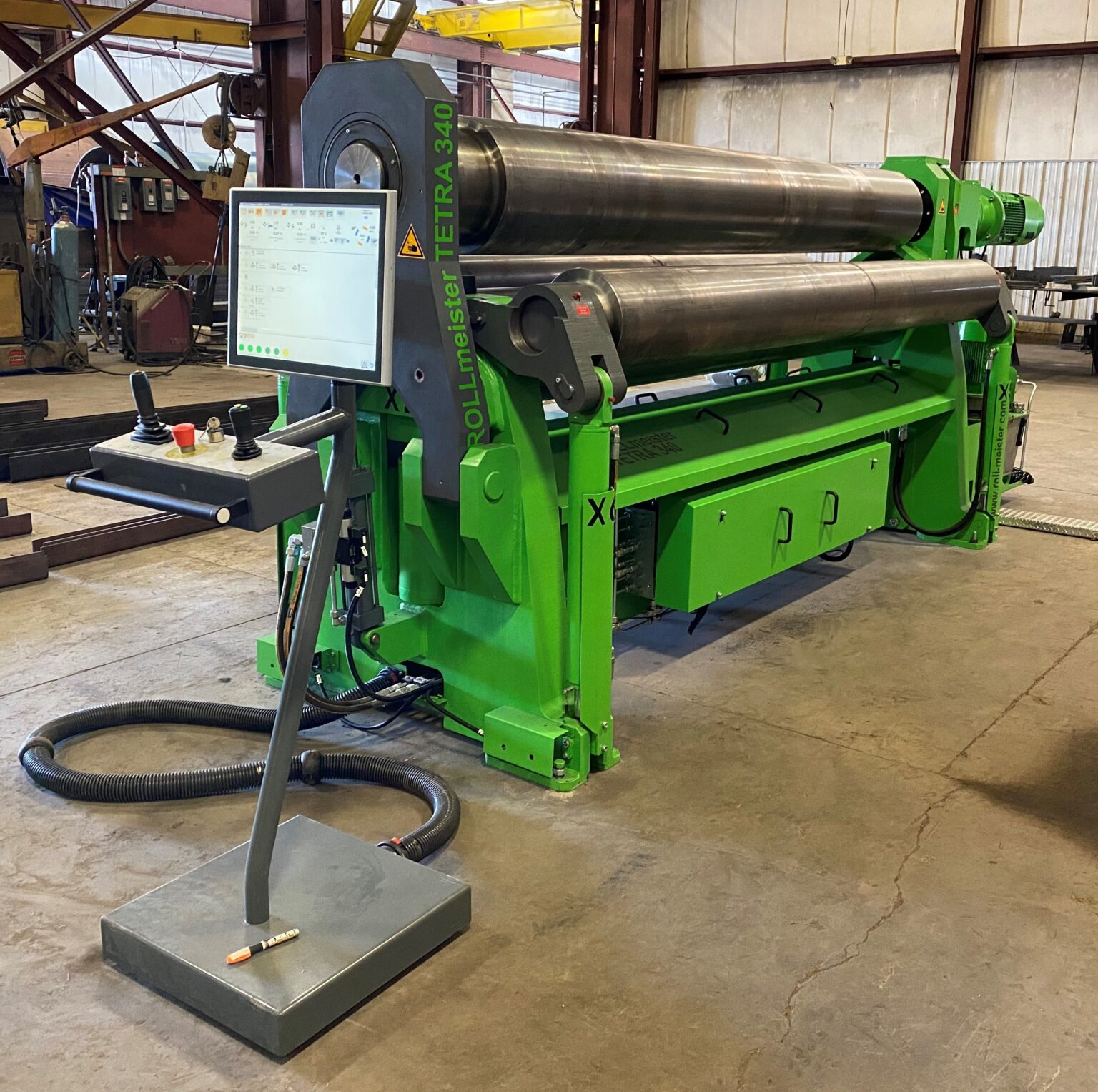

  • Large and Small Plate Rolls:
    • Large: min 18” diameter, up to 7/8” thick x 10’-0”
    • Small: min 8” diameter, up to 3/8” thick x 6’-0”

If you're exploring capabilities or requesting specs,
our team is here to help.
